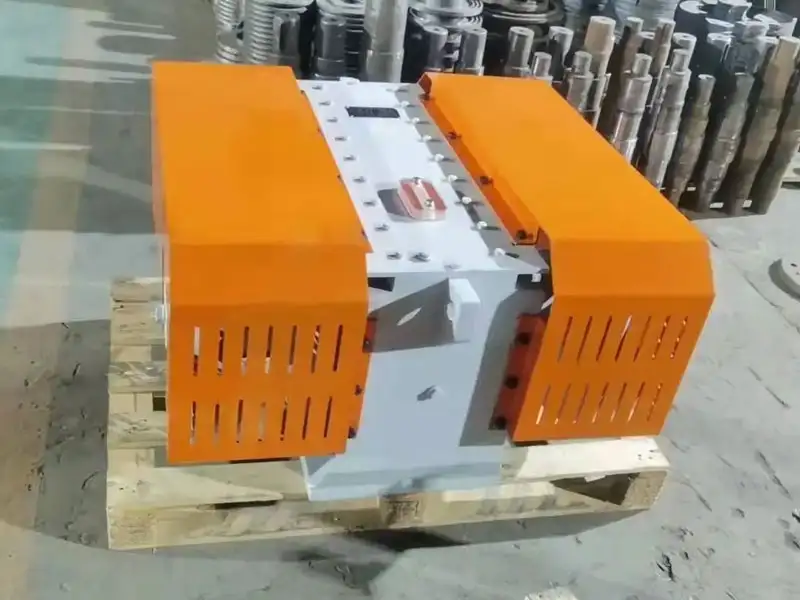

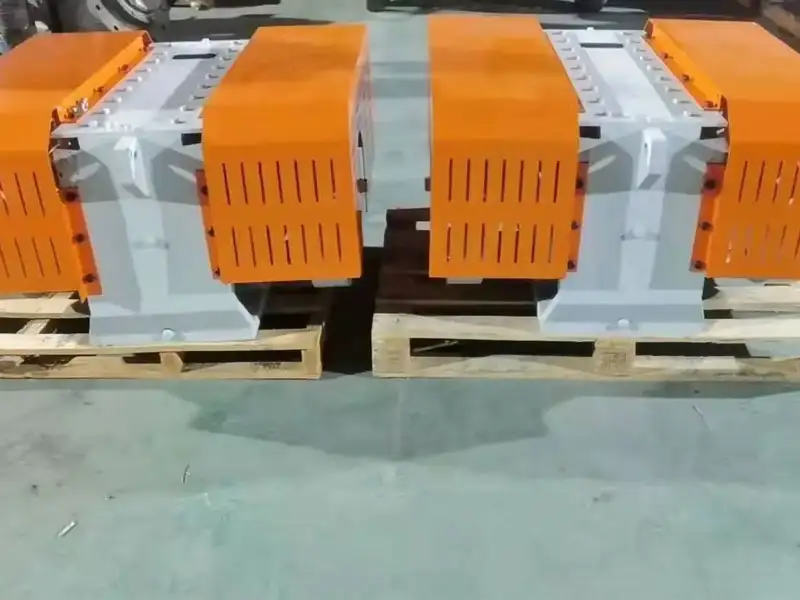

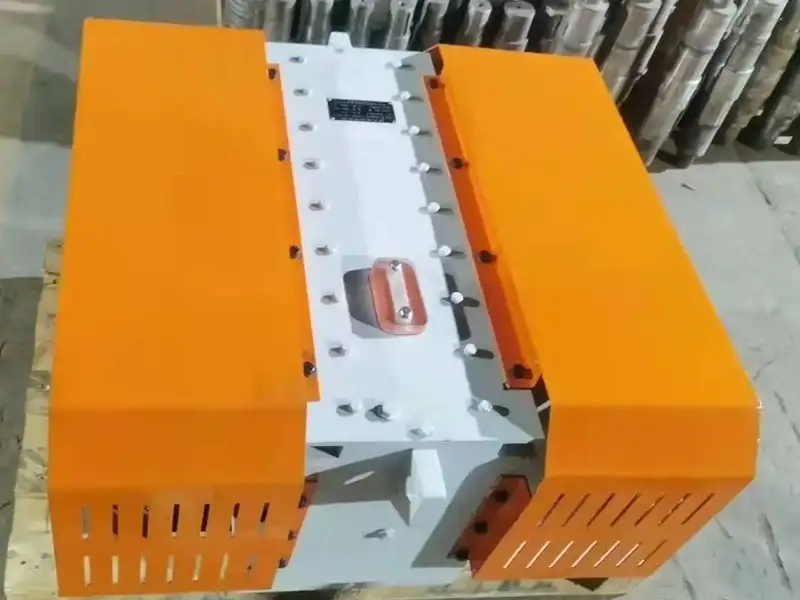

Thin oil shaker
1. Product introduction
Thin oil vibrator is the core part of the large vibrating screen, and the same specifications of the vibrator compared to WJZC-250-6 box type thin oil vibrator has a higher operation rate, as well as simple operation, small maintenance, lubrication and sealing performance is good. It is an ideal replacement for the vibration source of the existing large and medium-sized vibrating screen. Compared with the dry oil shaker, the maintenance rate is lower, the vibration force is stronger, the time to replace the gear oil is as long as March to June.
The vibrator uses the reverse self-synchronization principle to make the vibration machinery produce linear motion, the motor does not engage in vibration, through the universal coupling and vibration reliable connection, by the shell, shaft, bearing, eccentric block and other parts.
2. Working principle
The working principle of thin oil shaker is to use a self - synchronous inertia shaker. The two rotating shafts of the shaker are respectively driven by two motors with similar characteristics, and the two rotating shafts with eccentric blocks achieve reverse rotation at the same speed depending on the principle of vibration synchronization, so as to obtain the exciting force.
3. Product characteristics
1, the eccentric block is convenient to adjust and disassemble.
2, contact and axial labyrinth seal, plus a sealing cover, sealing performance is good.

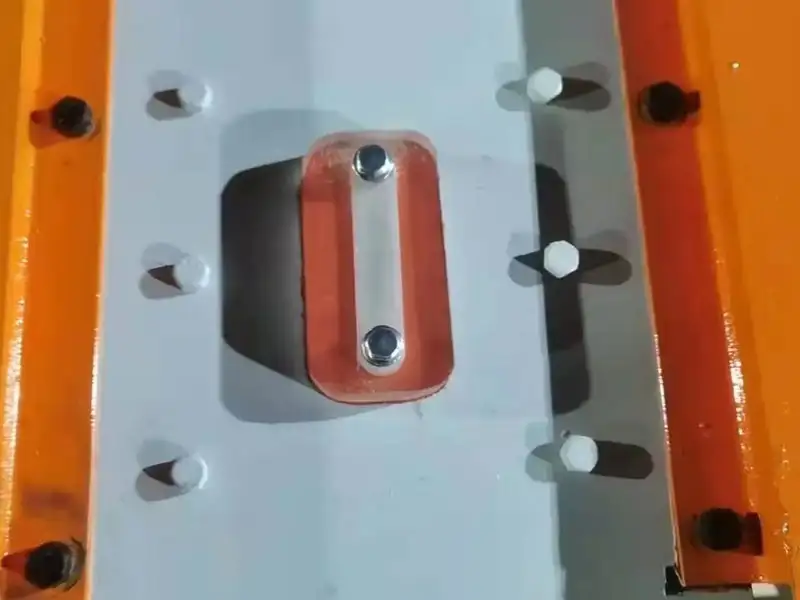

3. Oil filling holes are arranged above the casing to ensure good gear lubrication and no oil leakage. The time to change the gear oil can be as long as 3-6 months
4, Adopt gear operation, running resistance is small, no noise, long service life.
5, with stable and reliable operation, flexible adjustment, small maintenance and so on.
6, the service life is 3-5 years.
4. Installation mode
The thin oil shaker has two circulation modes: internal circulation and external circulation. There are two kinds of installation,one is Mosaic, the other is seat. The Mosaic type is the shaker installed on the screen on both sides of the vibrating screen, and the seat type is installed above or below the equipment.
Technical Specifications
Comparison table of thin oil and fat oil exciter | |||
Subitem | Fat shaker | Thin oil shaker | Remark |
Mounting dimension | Original size | Same size as original |
|
Shaft length | Original size | Same size as original |
|
Lubricating oil | Lithium base grease number four | Gear oil |
|
Bearing life | 4-6 months | 10-12 months |
|
Fuel consumption | Normal fuel consumption | The fuel consumption is one fortieth of that of crude oil |
|
Energy saving | No energy saving | Good energy saving effect. The power consumption is 80% of the original shaker |
|
Start | Difficult to start at low temperatures | Low temperature environment is easy to start |
|
Operating cost | Normal cost | One fifth of the operating cost of the original shaker |
|
Maintenance cost | Normal cost | It is one third of the original maintenance cost |
|
Purchase price | Normal price | Twice the price of the original shaker |
|
Maintenance | Gas up 1-3 times a day | Gas up once every two months |
|
Oil seal | Domestic | NJ or Taiwan, Italy |
|
Technical Specifications
Ttribute name | Attribute data | Attribute name | Attribute data |
Model | WJZC-250-6 | Place of origin | Xinxiang, Henan |
Shaft material | 40 cr | Application | Used for vibration source of rotary vibration screen, dewatering screen, classification screen and other screening equipment |
Rated speed | 960r/min | Exciting force | 250KN |
Excitation force adjustment mode | Adjust the counterweight | Number of poles | 6 poles |
Casing material | All cast shell | Shaker bearing | Dalian metallurgical NJ bearing |
