Product Features

1. Introduction

Construction waste recycling is a sustainable development project. Properly managing construction waste not only yields environmental benefits but also generates significant economic advantages. After sorting, selecting, and appropriately crushing construction waste, it can be used to produce recycled products such as recycled eco-friendly bricks, recycled concrete, and recycled aggregates, thereby realizing its true value. Recycling applications include municipal, road, and garden sectors.

The D Series 100 Track-Mounted Mobile Crushing Plant is a new type of waste processing equipment developed based on years of experience in the independent research, development, and manufacturing of track-mounted mobile plants, combined with the latest user requirements. Its structural design, equipment configuration, and application combinations have been optimized and innovated, offering greater flexibility and significantly expanding the application scope of track-mounted mobile crushing plants, truly achieving on-site material processing.

2. Structure and composition

Mobile construction waste crushing plant equipment includes construction waste crushers, vibrating screens, vibrating feeders, magnetic separators, diesel generator sets, conveyors, and other specialized equipment for crushing and screening construction waste. The sorted construction waste is first processed through specialized magnetic separation equipment to remove iron particles. It is then crushed using coarse, medium, or fine crushing equipment to produce recycled aggregate of a specific particle size, which can be used for roadbed materials, unburned bricks, cement additives, and other applications.

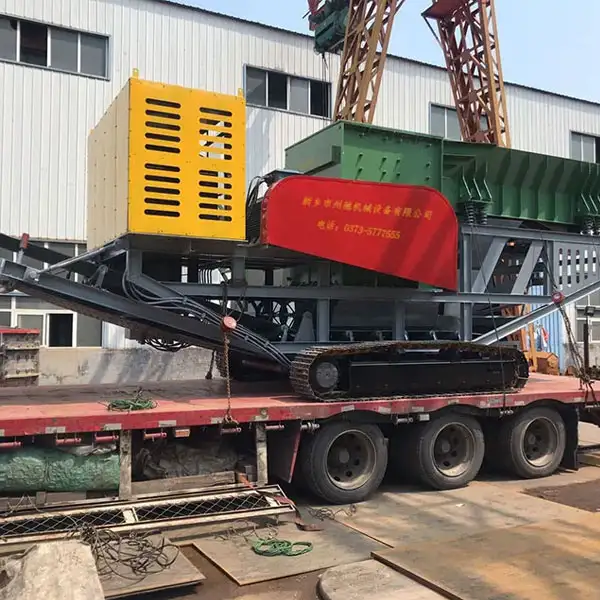

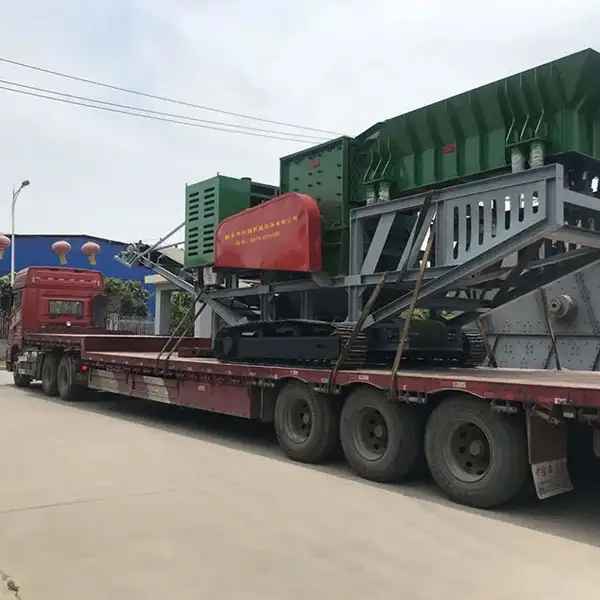

Track-mounted mobile crushing plant (suitable for processing construction waste, easy to transport, and maneuverable.)

3. Product advantages

(1) Multi-functional machine, reducing investment by 40%

A mobile construction waste processing machine that can be used in conjunction with a crusher, and also features a feeder, conveyor belt, and magnetic separator, making it easy to remove reinforcing bars from concrete blocks. The separator can completely separate construction wood blocks and plastic waste.

(2) Intelligent control, enhancing safety

The construction waste crusher supports “one-button control,” enabling remote operation and smooth mobility. PLC centralized control allows

unmanned operation while providing comprehensive monitoring and voice-based safety alerts, thereby enhancing production safety.

(3) Sealed production, fully compliant with environmental protection standards

Multiple dust prevention measures, including an offline automatic dust removal system, can be equipped with conveyor belt dust-proof guards to effectively isolate dust, ensuring the equipment meets environmental protection requirements.

(4) Excellent crushing results, with wide-ranging applications.

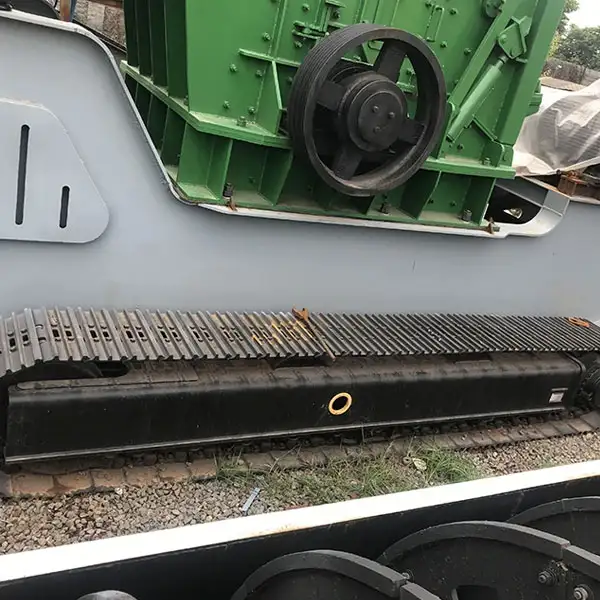

(5) The equipment uses a tracked walking mechanism, ensuring durability and easy mobility.

Property name	Attribute Data	Property Name	Attribute data
country of origin	Xinxiang, Henan	Model	D Series Model 100
Type	composite crusher	Feed size	300-500 mm
Grind	intermediate crusher	Discharge particle size	10-30 mm
Production capacity (t/h)	50-200	Application areas	Suitable for the disposal of construction waste
