Forced synchronization of thin oil exciter

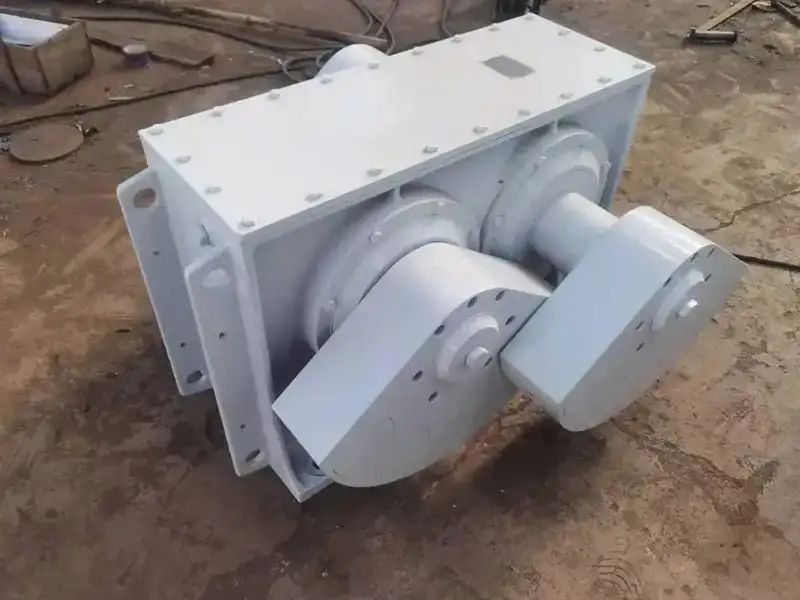

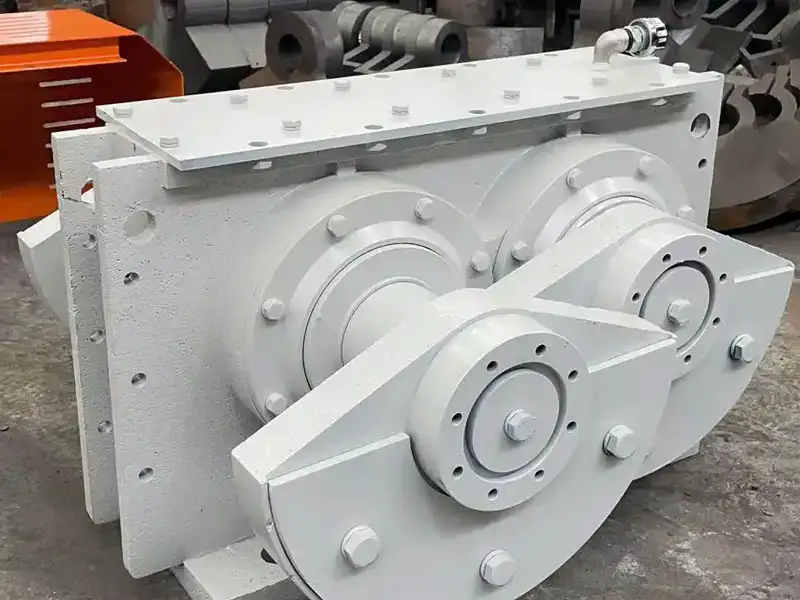

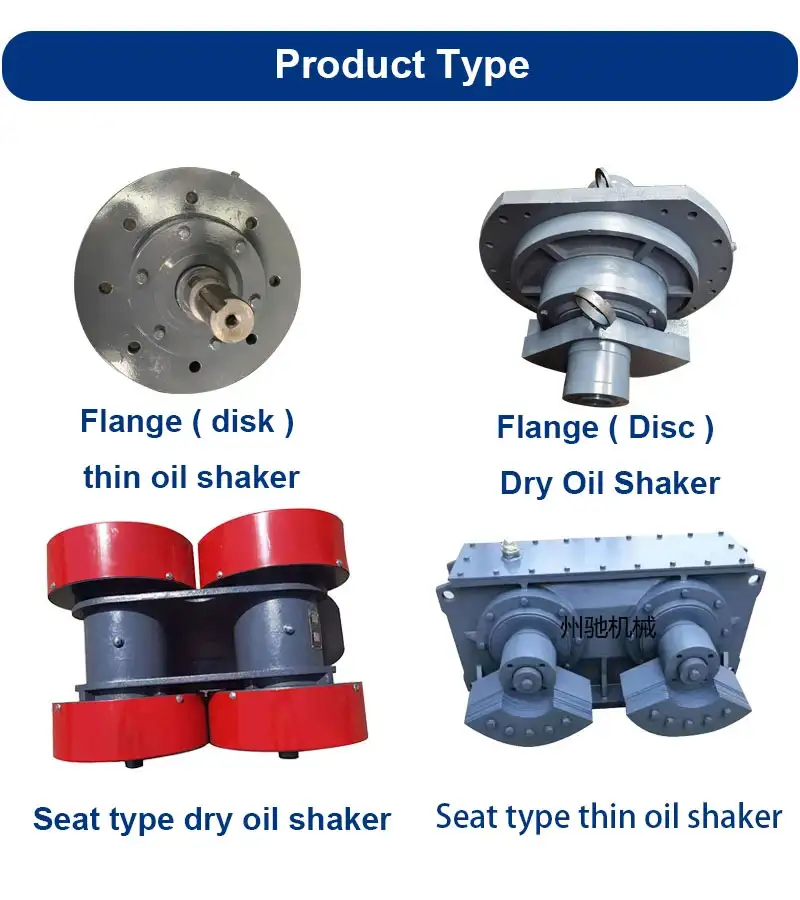

JZQ-100-6 Thin Oil Shaking Table

1. Product Introduction

JZQ-100-6 Thin Oil Vibrator is the core component of large vibrating screens. Compared to vibrators of the same specification, it offers higher operational efficiency, simpler operation, minimal maintenance, and excellent lubrication and sealing performance. It serves as an ideal replacement for the vibration source in existing large and medium-sized vibrating screens. Compared to dry oil-lubricated machines, it has a lower maintenance rate, stronger vibrational force, and the same gear oil replacement interval as the 6-month model.

The vibrator utilizes the principle of reverse self-synchronization to generate linear motion in the vibrating machinery. The motor does not engage with the vibration mechanism and is reliably connected via a universal joint coupling. It consists of components such as the housing, shaft, bearings, and eccentric weights.

2. Product Features

1. Eccentric weights are easy to adjust and disassemble.

2. Contact and axial labyrinth seals ensure excellent sealing performance.

3. An oil injection hole is provided above the sleeve to ensure proper bearing lubrication and prevent oil leakage. The interval for changing gear oil can be as long as 3-6 months.

4. Features include lightweight, compact size, simple structure, easy installation and maintenance, and a long service life.

5. Characteristics include stable and reliable operation, flexible adjustment, and minimal maintenance.

6. Service life is 3-5 years.

Technical Specifications

Thin Oil Lubricant Incentive Comparison Table
Sub-item	Fat Shock	Thin oil shaking table	Remarks
Installation dimensions	Original size	Same size as the original

Shaft length	Original size	Same size as original

Lubricating oil	Lithium-based grease No. 4	gear oil

Bearing life	4-6 months	10-12 months
Fuel consumption	normal fuel consumption	Fuel consumption is one-fortieth of crude oil.

Energy saving	Not energy efficient	Excellent energy-saving performance. Power consumption is 80% of the original vibrating screen.

Begin	Difficult to start at low temperatures	Easy to start in low-temperature environments

Operating expenses	normal cost	One-fifth of the operating cost of the original shaking table

Maintenance costs	Normal cost	It is one-third of the original maintenance cost.

Purchase price	regular price	The price is twice that of the original shaking bed.

Maintenance	Refuel 1-3 times a day.	Refuel every two months.

Oil seal	domestic	NJ or Taiwan, Italy

Property Name	Attribute data	Attribute name	Attribute data
Model	JZQ100-6	country of origin	Xinxiang, Henan
shaft material	40 cr	application	Vibration source for screening equipment such as rotary vibrating screens, dewatering screens, and grading screens
rated speed	960 rpm	Maximum excitation force	10,000 N
Excitation force adjustment mode	Adjust the counterweight	equipment dead weight	200KG
Casing material	All cast shells	Vibrating screen bearing	Dalian Metallurgical NJ Bearings
