Product Features Overview

1. Introduction

Lightweight linear dewatering screens are primarily designed for dewatering and desliming. They are suitable for applications such as sand washing in sand and gravel plants, coal slurry recovery in coal preparation plants, and tailings dry stacking. These screens are also known as sand and gravel dewatering screens, mining dewatering screens, coal slurry dewatering screens, tailings dewatering screens, and high-frequency dewatering screens.

2. Applicable Industries

Tailings: Iron tailings, gold tailings, copper tailings, vanadium tailings, lead-zinc tailings, graphite tailings

Sand Washing: Quartz sand, zircon sand, glass sand, construction sand, foundry sand, building materials sand, potassium feldspar dewatering

Coal Slurry Dewatering: Coal Slurry, Coal Gangue

Wastewater Treatment: Solid-liquid separation of municipal wastewater, industrial wastewater, and river sludge; filtration in wastewater treatment plants

3. Working Principle

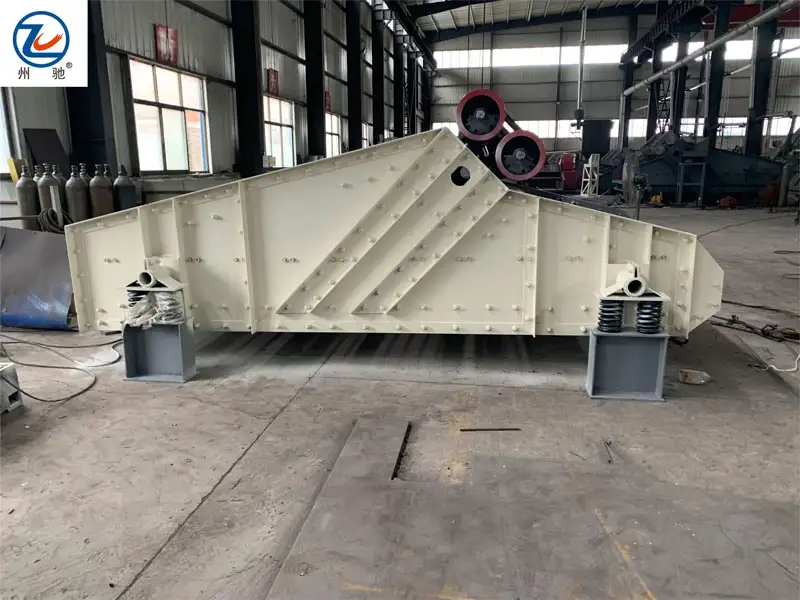

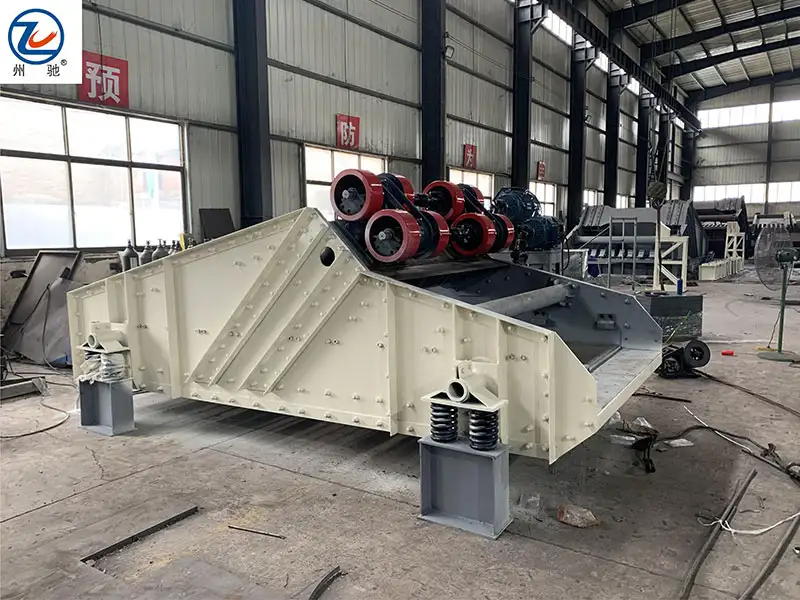

Utilizes dual motor drive self-synchronization technology, where the shaking table is driven by winding coupling. Two sets of shaking tables rotate synchronously in opposite directions, The vibrational force generated by the eccentric blocks is offset in the direction parallel to the motor shaft axis and stacked as a resultant force in the direction perpendicular to the motor shaft axis, thereby forming a single vibration along the direction of the vibrational force. The two shafts have an inclination angle relative to the screen surface. Under the action of the vibrational force, the screen box performs reciprocating linear motion, The material is thrown onto the screen surface and moves forward in a straight line. The V-shaped screen surface structure is adopted to achieve better dewatering effects.

4. Product Features

1. Compact size with high processing capacity per unit area, facilitating system process layout.

2. Low design frequency, amplitude, and power source, suitable for various dewatering needs and 24-hour continuous dry discharge operations.

3. V-shaped screen surface design, with a -5° slope on the screen surface for dewatering, resulting in low moisture content in the dry tailings and high efficiency.

4. High-wear-resistant screen plates with a long service life, modular assembly design for easy replacement.

5. Steel components are riveted and welded together to form a stress-free, high-strength, lightweight, and durable frame structure.

5. Product Advantages

1. The dewatering screen uses a vibrator driven by a standard motor, with an overall riveted structure, making it more suitable for 24-hour continuous production;

2. The V-shaped screen surface design enhances dewatering efficiency.

(1) The feed end backplate has a 45-degree angle;

(2) The main screen plate has a 0-(-5) degree incline;

(3) The screen mesh is made of pressed fabric, high-wear-resistant polyurethane, or 304 stainless steel. The screen size can be selected according to material requirements;

(4) The amplitude of the dewatering screen is adjustable from 2-6 mm.

3. The screen plate adopts a modular design, making replacement convenient, cost-effective, and ensuring a long service life.

Product Parameters

Property Name	Attribute data	Attribute name	Attribute data
Country of origin	Xinxiang, Henan	Model	ZSG-1022
Materials	Q235/304	Screen size	0.3-1.0毫米
Application	Dehydration and desliming can be used in sand washing at sand and gravel plants, coal slurry recovery at coal preparation plants, and tailings dry stacking at mineral processing plants.	Number of screen layers	1st to 3rd floors
Maximum feed size	20 millimeters	Screen	slit, polyurethane, pressing cloth
Processing capacity (t/h)	100	Application areas	Chemical industry, metallurgy, petroleum, coal, mineral processing, power generation, heavy-medium coal washing, sand production, washable sand, tailings, coal gangue, etc.
